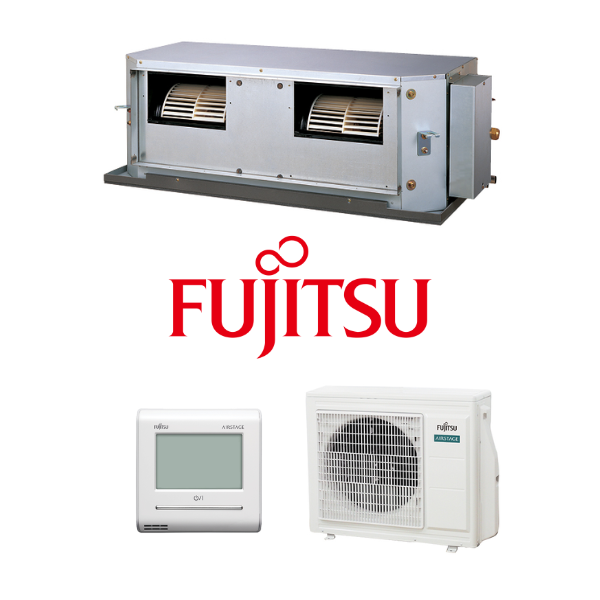

FUJITSU 25KW INVERT DUCT -3PH Set ^Sale

Features:

Zone Control
Enables targeted air-conditioning by allowing users to select and control individual zones within the indoor space for improved efficiency and comfort.

Auto Restart
Automatically resumes operation in the previous mode after a temporary power interruption once power is restored.

Features:

Auto Changeover
Seamlessly switches between operating modes based on the set temperature and current room conditions.

Blue Fin Heat Exchanger
Enhanced corrosion resistance for the outdoor heat exchanger, making it ideal for coastal environments through advanced blue fin coating treatment.

Connectable Distribution Duct
Compatible with field-supplied branch ducts for efficient and flexible airflow distribution.

Connectable Fresh Air Duct
Supports the introduction of fresh outdoor air into the conditioned space for improved indoor air quality.

Economy Mode
Reduces maximum operating current to limit power consumption while maintaining comfortable performance.

On-Off Timer
Allows the unit to be programmed to turn on or off once within a 24-hour period.

Program Timer
Offers four scheduling options: ON, OFF, ON → OFF, or OFF → ON for flexible operation control.

Weekly Timer
Enables customized ON/OFF scheduling for each day of the week, up to 7 days.

Built-In Drain Pump
Includes an integrated drain pump for convenient condensate water removal.

Operating Temperature Range (Up to 50°C)
Designed to operate reliably in cooling mode at ambient temperatures up to 50°C.

Specifications — SET‑ARTH90KHTA‑3PH

Capacity

Cooling Capacity: 22.4 kW

Heating Capacity: 25.0 kW

Power Supply

Three Phase

Dimensions (H × W × D)

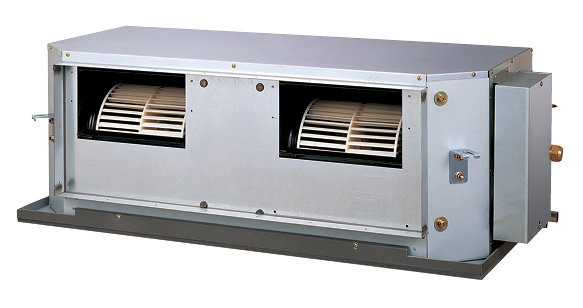

Indoor Unit: 360 × 1,400 × 850 mm

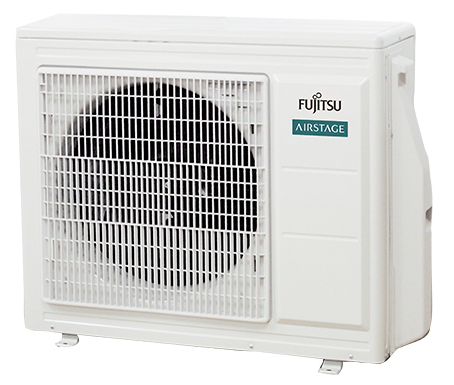

Outdoor Unit: 1,418 × 970 × 370 mm

Refrigerant

Type: R32

Operating Temperature Range (°C DB)

Cooling: ‑15°C to 50°C

Heating: ‑20°C to 24°C

Pipe Length

Maximum: 75 m

Precharged: 30 m

Indoor Dimensions: 360 × 1,400 × 850mm, Outdoor Dimensions: 1,418 × 970 × 370mm
