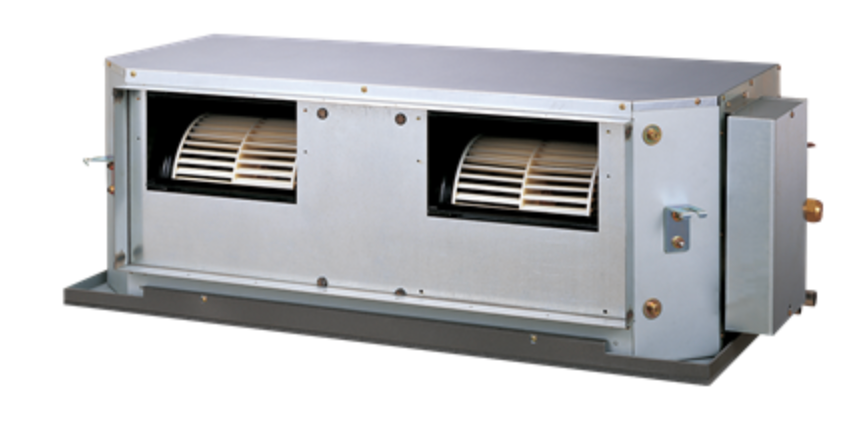

Fujitsu SET-ARTH36KHTA 10.0kW High Static Ducted AC System 1 Phase QLD Prices Only^Sale

Regular price $3,903.00

Compare < class="wishlist-text">Wishlist

Vendor: Expert Wholesale Supplies

Type: Air Conditioning

Sku: SET-ARTH36KHTA

Description

Specifications

Indoor unit	ARTH36KHTA
Outdoor unit	AOTH36KBTA
Operation Type	Reverse Cycle
Power Source V/Ph/Hz	230 / 1 / 50
Cooling Capacity kW (Rated (Min – Max))	10.00 (2.8 – 11.4)
Heating Capacity kW (Rated (Min – Max))	11.20 (2.7 – 14)
Input Power Cooling kW (Rated (Max))	3.08 (4.01)
Input Power Heating kW (Rated (Max))	2.8 (4.21)
EER Cooling kW/kW	3.25
COP Heating kW/kW	4
Star Rating Cooling (0-10) (Hot / Average / Cold)	3 / 2.5 / 3
Star Rating Heating (0-10) (Hot / Average / Cold)	3 / 2.5 / 1.5
Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.642 / 4.426 / 4.675
Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)	4.72 / 4.073 / 3.429
Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.972 / 5.144 / 5.544
Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)	4.72 / 4.34 / 3.67
Running Current amps (Cooling / Heating)	13.6 / 12.3
Moisture Removal l/hr	1.4
Indoor Sound Pressure Cooling dBA (High / Quiet)	41 / 36
Indoor Sound Pressure Heating dBA (High / Quiet)	41 / 36
Outdoor Sound Pressure dBA (Cooling / Heating)	53 / 53
Outdoor Sound Power dBA	70
Static Pressure Range PA (Min to Max)	60 to 210
Air Circulation (Indoor – High Fan) Cooling l/sec	695
Air Circulation (Indoor – High Fan) Heating l/sec	695
Indoor Unit Dimensions mm (Height x Width x Depth)	400 x 1050 x 500
Indoor Unit Weight kg	39.00
Outdoor Unit Dimensions mm (Height x Width x Depth)	788 x 940 x 320
Outdoor Unit Weight kg	52.00
Piping Connects mm Ø (Liquid / Gas)	9.52 / 15.88
Pipe Length m (Max (Precharged))	50 (30)
Max Height Difference m	30
Operation Range Cooling °CDB (Min to Max)	-10 to 50
Operation Range Heating °CDB (Min to Max)	-15 to 24
Refrigerant Type	R32
Refrigerant Amount g	1,900
